We have designed the world’s most complete and advanced range of cappers.

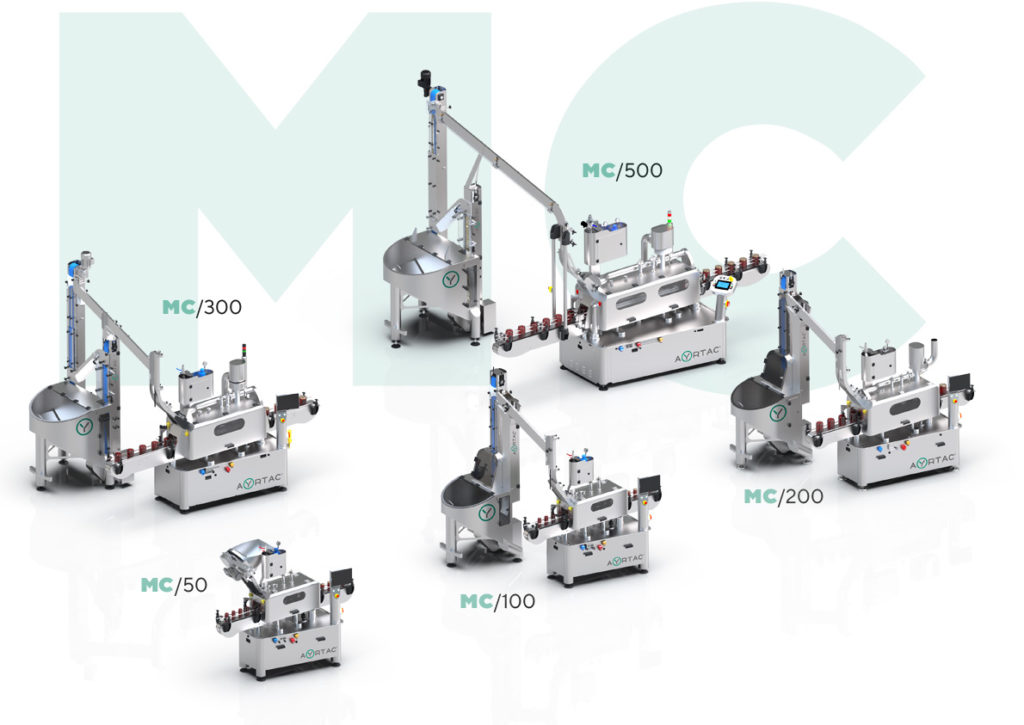

Range of MC cappers
Select the model that suits your production capacity.
The whole MC series closes DTO caps.
MC/50 | MC/100 | MC/200 | MC/300 | MC/500 | |
|---|---|---|---|---|---|
PACKAGING SPEED | Up to 70 jars/min* | Up to 120 jars/min* | Up to 200 jars/min* | Up to 300 jars/min* | Up to 500 jars/min* |
CAP Ø | 38-110 mm | 38-110 mm | 38-110 mm | 38-110 mm | 38-110 mm |
JAR Ø | 43-110 mm | 43-110 mm | 43-160 mm | 43-160 mm | 43-160 mm |
JAR HEIGHT | 38-260 mm | 38-260 mm | 38-260 mm | 38-260 mm | 38-260 mm |
ELECTRICAL
REQUIREMENTS | 1,5 Kw | 2 Kw | 2,5 Kw | 3 Kw | 5 Kw |
GENERAL DIMENSIONS** | 2219x991x2020mm 550 Kg | 2432x2357x2711mm 800 Kg | 2917x2357x2711mm 950 Kg | 3457x2611x3114mm 1350 Kg | 4498x3962x3507mm 2200 Kg |
STEAM INSTALLATION | 1/2” 5-8 bar 30-90 Kg/h | 1/2” 5-8 bar 50-110 Kg/h | 3/4” 5-8 bar 150-200 Kg/h | 3/4” 5-8 bar 200-250 Kg/h | 1” 5-8 bar 250-300 Kg/h |
WATER INSTALLATION | 1/4” 8 l/h | 1/4” 10 l/h | 1/4” 12 l/h | 1/4” 20 l/h | 3/8” 30 l/h |
VARIABLE SPEED DRIVE | Optional | Optional | Yes | Yes | Yes |
CENTRALISED LUBRICATION
SYSTEM | Optional | Optional | Optional | Yes | Yes |
DOUBLE BELT | Optional | Optional | Optional | Yes | Yes |
STEAM EXTRACTION SYSTEM | Optional | Optional | Yes | Yes | Yes |
* Estimated speed with cap 63 mm Ø.
** The dimensions correspond to the capper and cap feeder assembly, all of which can be adapted to specific customer requirements.
- SMALL AND MEDIUM PRODUCTION RATES -
MC/50 - MC/100
Equipment designed to deal with medium and high production rates,
easy maintenance and quick format changeover.
MC/50
Packaging up to 75 containers per minute. Easily upgradable to the MC/100 model to absorb higher production levels.
MC/100
A unit focused on medium production, with a rate of up to 120 containers per minute.
- MEDIUM AND HIGH PRODUCTION -

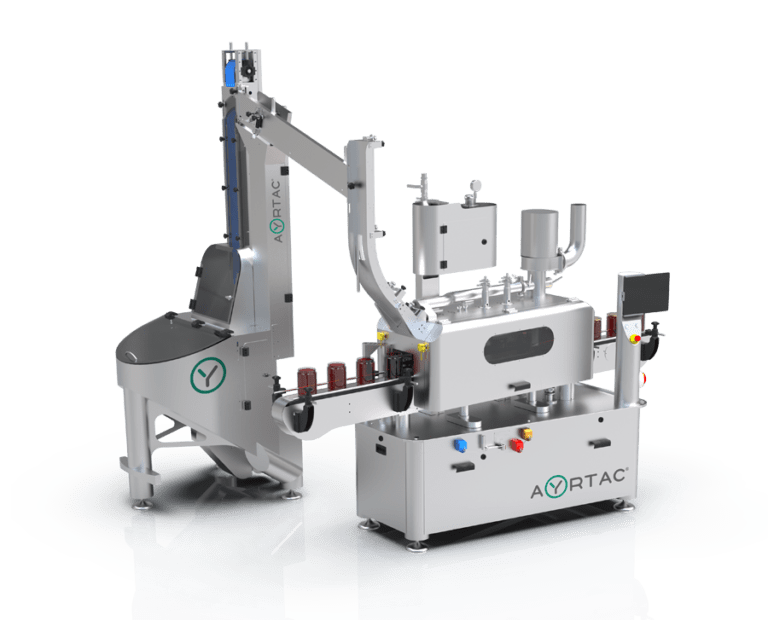

MC/200 - MC/300
Equipment designed to deal with medium and high production rates,
easy maintenance and quick format changeover.
MC/300
With the MC/300 you can reach filling speeds up to 300 containers per minute.
- Success Stories -
Aceitunas Torremar
Jerónimo Nicolás, manager of Aceitunas Torremar, tells us what it was like and what the installation of Ayrtac MC/100 packaging equipment entailed.
- HIGH PRODUCTION RATES -
MC/500
A high-performance machine ready to take on high production rates, reaching a packaging rate of up to 500 containers per minute. It has a hopper with magnetic elevator with double column and lid turner.
Controller screen
High efficiency in closing safety
Ergonomic design with easy access
Mechanical speed synchronization
- TECHNICAL SERVICE -
Always ready
Our technical team is on hand to assist you throughout your production campaigns, guaranteeing peace of mind and maximum efficiency.
At AYRTAC® we are leaders in innovation in filling and capping systems for containers.
Solving problems is our business.
Whatever the size of your project. We offer you efficient and reliable solutions to your packaging processes.
